Vermont 进口硬质合金光面针规套装
Vermont 进口发黑光面针规套装
Vermont 进口镀铬光面针规套装
Vermont 进口光面针规套装
Vermont 进口光面针规套装现货销售
Make quick and accurate measurements with Vermont Gage pin gages. Measure hole diameters, calculatedistances between holes, gageslot widths and locations. Use for Go/NoGo inspection. Set micrometers, verniers and other measuring devices.
- Class ZZ (.0002" or 0.005mm tolerance) 公差 classZZ
- Go (Plus) or NoGo (Minus) 有通规或者止规形式
- .0005" or 0.01mm diameters
- .001" or 0.02mm set increments 增量
- Tool Steel; 60/65 Rc 材质及硬度
- 2" Long 长度
- 10 microinch finish or better
- Round within .0001" or 0.0025mm 圆度
- Marked with diameter and direction of tolerance on gages over .0605"大于0.0605inch尺寸的刻字
- Certificate of Accuracy is included. 有合格证
- ISO 17025 Accredited and Non-Accredited Calibration Certificates may be purchased.
美国Vermont Gage成立于1980年,专业生产ZZ级光面针规套装、美标(AGD)可调式螺纹环规、美标螺纹塞规、校对塞规,以及NPT螺纹规、ANPT螺纹规、NPTF螺纹规、NPSM螺纹规、NPSF螺纹规、NPSI螺纹规,ISO-228等管螺纹量规,同时可以提供硬质合金Carbide材料的光面通止规,医疗行业的Hex Gage六角规、Square Gage四方形量规、Hex Lobe Torx梅花通止规,航空军工类UNJ航空量规等。苏州斯文克精密测量设备有限公司(SOWANT PRECISION GAGE CO.,LTD)作为美国Vermont
Gage在中国的官方指定授权代理商,负责中国区Vermont Gage全系列产品的销售和技术支持,同时拥有大量螺纹校对规Setting Plug Gage,与航天计量、华溯检测等知名检测机构为客户提供可调式螺纹环塞规的维修、校准服务。同时我们代理Gagemaker单项仪、Cameron ball Gage、国产Acme量规定制、国产宏峰石油量规、国产API石油量规、INSIZE量具、日本三丰Mitutoyo量具、瑞典海克斯康三坐标、Allen Gauge量仪、Dyer GAGE孔径量仪、英国GBIS超声波探头、安徽Trimos测高仪、苏州Tesa测高仪、MT-3024-50校准台现货、Marposs测量电子柱E4N现货等,期待您的咨询。

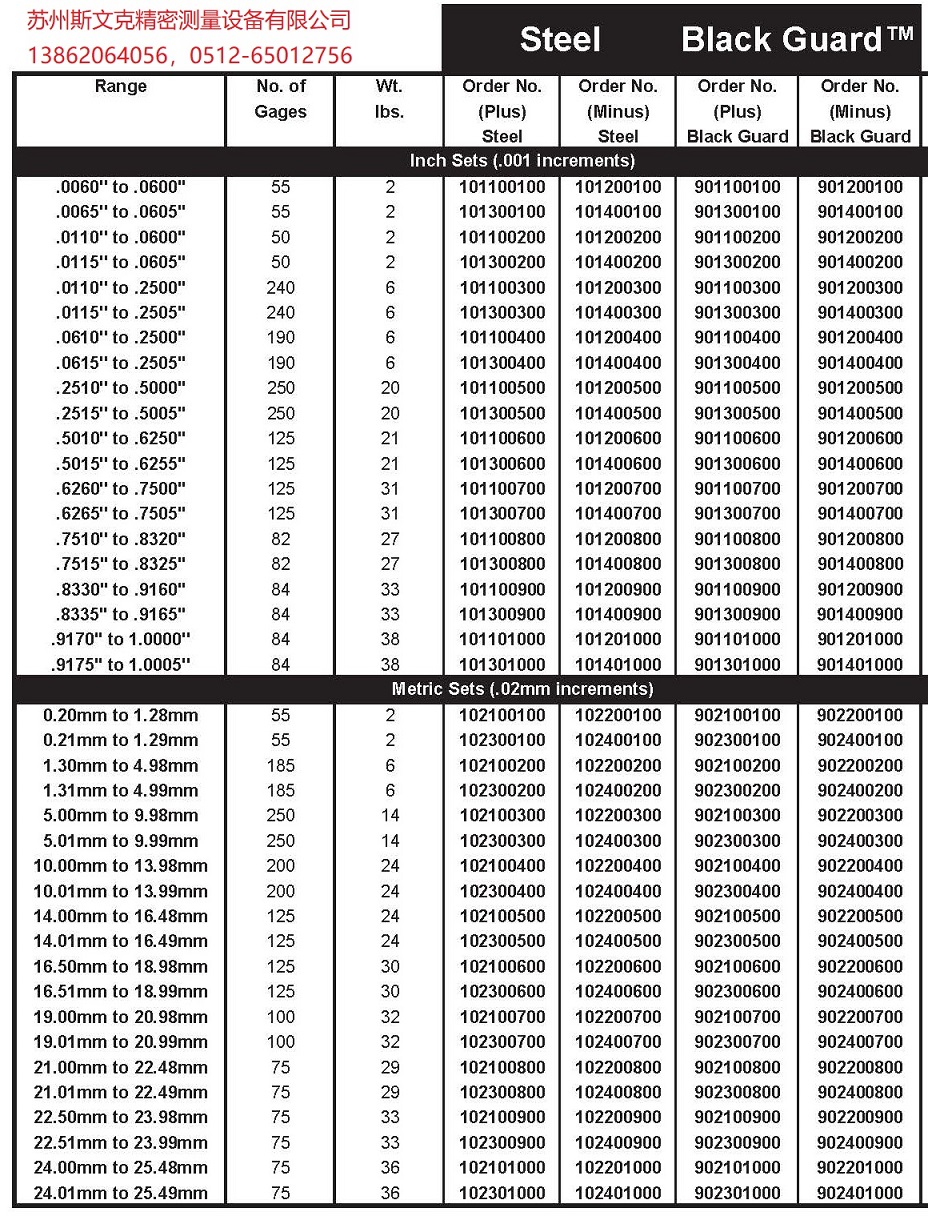

针规套装规格如下:
