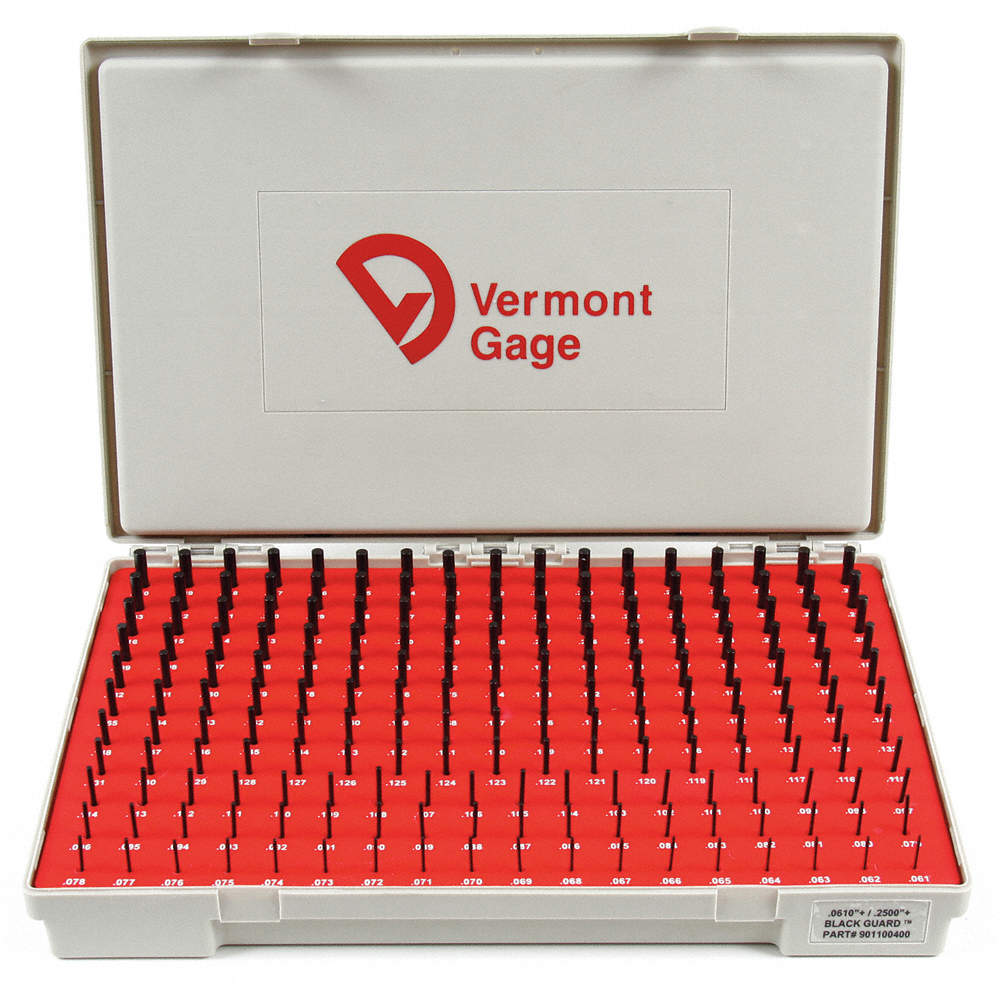

美国Vermont Gage公制针规套装说明
摘要：美国Vermont Gage公制针规套装，基本套装为class ZZ等级，材料分为 steel 和 black guard两种。当然可以根据客户的定制要求 选择更高级别的class X。更多的产品期待您的咨询。
| Diameter Range | "XX" | "X" | "Y" | "Z" | "ZZ" |
|---|---|---|---|---|---|
| Above - Including | Inch | ||||
| .010" - .825" | .000020" | .000040" | .000070" | .0001" | .0002" |
| .825" - 1.510" | .000030" | .000060" | .000090" | .00012" | .00024" |
| 1.510" - 2.510" | .000040" | .000080" | .00012" | .00016" | .00032" |
| 2.510" - 4.510" | .000050" | .0001" | .00015" | .0002" | .0004" |
| 4.510" - 6.510" | .000065" | .00013" | .00019" | .00025" | .0005" |
| 6.510" - 9.010" | .000080" | .00016" | .00024" | .00032" | .00064" |
| 9.010" - 12.010" | .0001" | .0002" | .0003" | .0004" | .0008" |
| Above - Including | Metric | ||||
| .254mm - 20.96mm | .00051mm | .00102mm | .00178mm | .00254mm | .00508mm |
| 20.96mm - 38.35mm | .00076mm | .00152mm | .00229mm | .00305mm | .00610mm |
| 38.35mm - 63.75mm | .00102mm | .00203mm | .00305mm | .00406mm | .00813mm |
| 63.75mm - 114.55mm | .00127mm | .00254mm | .00381mm | .00508mm | .01016mm |
| 114.55mm - 165.35mm | .00165mm | .00330mm | .00483mm | .00635mm | .01270mm |
| 165.35mm - 228.85mm | .00203mm | .00406mm | .00610mm | .00813mm | .01626mm |
| 228.85mm - 305.05mm | .00254mm | .00508mm | .00762mm | .01016mm | .02032mm |
以下是产品的套装选择
| 范围 | 数量 | 重量 | Plus / Steel | Minus / Steel | Plus / Black Guard | Minus / Black Guard | List Price | Sale Price |
| 0.20 to 1.28mm | 55 | 2 | 102100100 | 102200100 | 902100100 | 902200100 | $590.00 | $572.00 |
| 0.21 to 1.29mm | 55 | 2 | 102300100 | 102400100 | 902300100 | 902400100 | $590.00 | $572.00 |
| 1.30 to 4.98mm | 185 | 6 | 102100200 | 102200200 | 902100200 | 902200200 | $595.00 | $556.00 |
| 1.31 to 4.99mm | 185 | 6 | 102300200 | 102400200 | 902300200 | 902400200 | $1195.00 | $1156.00 |
| 5.00 to 9.98mm | 250 | 14 | 102100300 | 102200300 | 902100300 | 902200300 | $1305.00 | $1244.00 |
| 5.01 to 9.99mm | 250 | 14 | 102300300 | 102400300 | 902300300 | 902400300 | $1305.00 | $1244.00 |
| 10.00 to 13.98mm | 200 | 24 | 102100400 | 102200400 | 902100400 | 902200400 | $1265.00 | $1236.00 |
| 10.01 to 13.99mm | 200 | 24 | 102300400 | 102400400 | 902300400 | 902400400 | $1265.00 | $1212.00 |
| 14.00 to 16.48mm | 125 | 24 | 102100500 | 102200500 | 902100500 | 902200500 | $1335.00 | $1268.00 |
| 14.01 to 16.49mm | 125 | 24 | 102300500 | 102400500 | 902300500 | 902400500 | $1335.00 | $1268.00 |
| 16.50 to 18.98mm | 125 | 30 | 102100600 | 102200600 | 902100600 | 902200600 | $1430.00 | $1344.00 |
| 16.51 to 18.99mm | 125 | 30 | 102300600 | 102400600 | 902300600 | 902400600 | $1430.00 | $1344.00 |
